Textured Printing

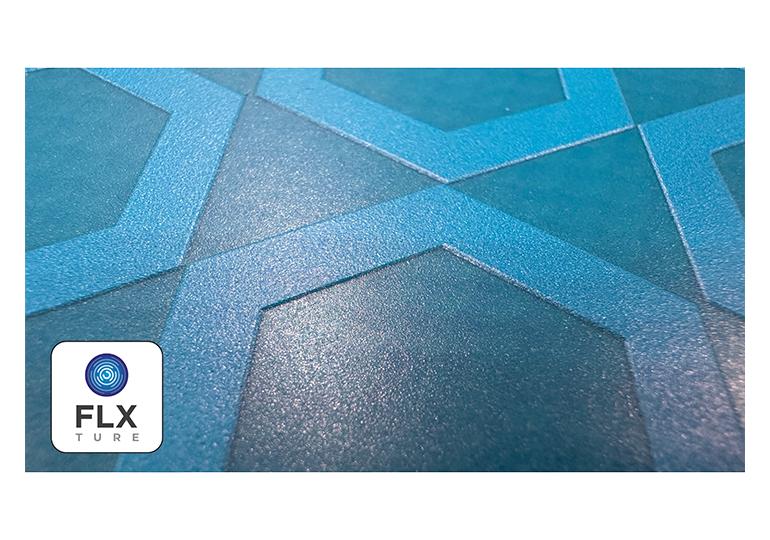

Close-up of a Canon UVgel FLXture print with tactile surface detail

Subtle detail / tactile finish

Suggestions of use - Stickers that can be applied where texture is desired.

01 / COLORADO UVGEL FLXTURE

Subtle texture, printed at production speed.

Canon FLXture uses five prepared UVgel layers to add controlled micro-relief to flexible print. It creates a refined tactile finish rather than a heavy raised build—useful for multidimensional stickers, labels, wall graphics and branded details that reward a closer look.

Texture: Five-layer micro-relief
Best for: Stickers + labels
Format: Flexible roll media

Build fine grain, textile weave, linework or embossed-style lettering into the print.
Pair tactile detail with matte, gloss or mixed-finish effects where the selected Colorado configuration supports them.
Designed for subtle, repeatable texture on flexible roll media.

Canon: Colorado FLXture technology

Final texture, finish and suitability depend on media selection, artwork preparation and production testing.

Close-up of layered UV ink forming a raised tactile graphic

Layer / cure / repeat

Use raking light in your photography so the height and edge definition are visible.

02 / LAYERED UV INK

Raised graphics with real depth.

Layered UV printing deposits and cures selected ink areas repeatedly, creating physical relief directly on compatible magnetic and rigid materials. AoSA can build tested graphic areas to approximately 1 mm, turning logos, linework, topography and spot details into tactile features above the surface.

Tested build: Up to ~1 mm
Substrates: Magnetic + rigid
Effect: True raised relief

Use for raised logos, wayfinding, patterns, fine-art accents and dimensional product graphics.
Let the base material remain visible around the printed relief for a more material-honest result.
Confirm height, edge quality, adhesion and durability through project-specific samples.

Test a raised print

The approximately 1 mm figure describes AoSA’s tested production target, not a universal result on every material. Samples and adhesion testing are required.

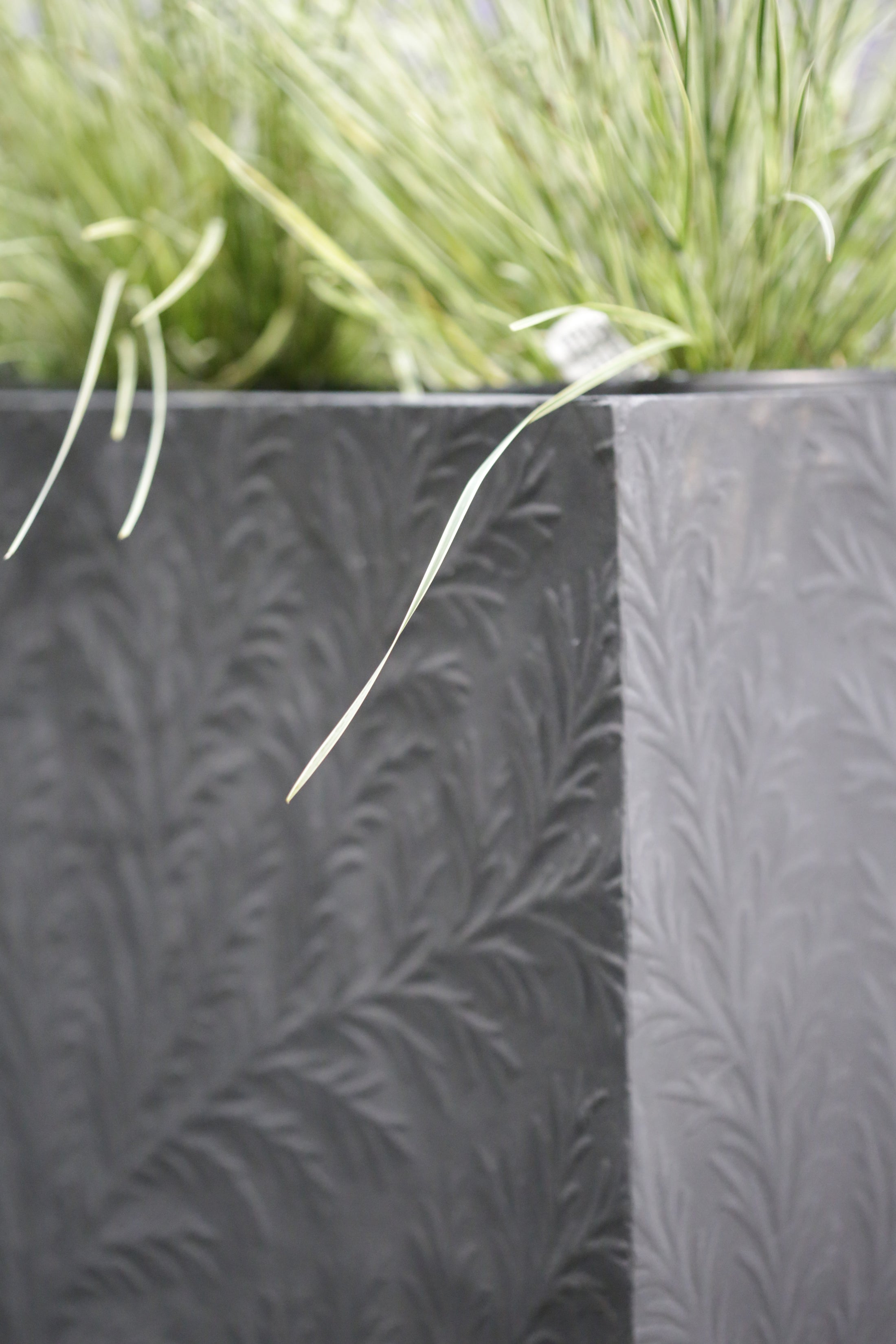

Custom textured architectural panel produced through a digital mold and casting workflow

Custom pattern / repeatable casting

Casting can be used for multiple applications reach out to us to discuss further option.

03 / DIGITAL MASTER + CASTING

From digital pattern to cast exterior form.

DIMENSE can generate custom textured stencils and surface masters from digital artwork. AoSA carries that geometry into a secondary mold-making and casting workflow for FRP planter skins, façade panels and other formed exterior elements—creating repeatable texture without relying on a stock mold pattern.

Workflow: Digital → mold → cast
Applications: Planters + façades
Material: Project-specific FRP

Translate branded patterns, organic textures and custom relief artwork into a casting surface.
Prototype the pattern digitally, then repeat it across multiple cast components.
Coordinate resin, reinforcement, coatings, attachment and code requirements around the final exterior application.

Develop a formed surface DIMENSE: digital casting stencil concept

Roland/DIMENSE documents the digitally produced stencil and casting concept. AoSA’s FRP adaptation is a custom fabrication workflow and must be engineered and tested for each exterior use.

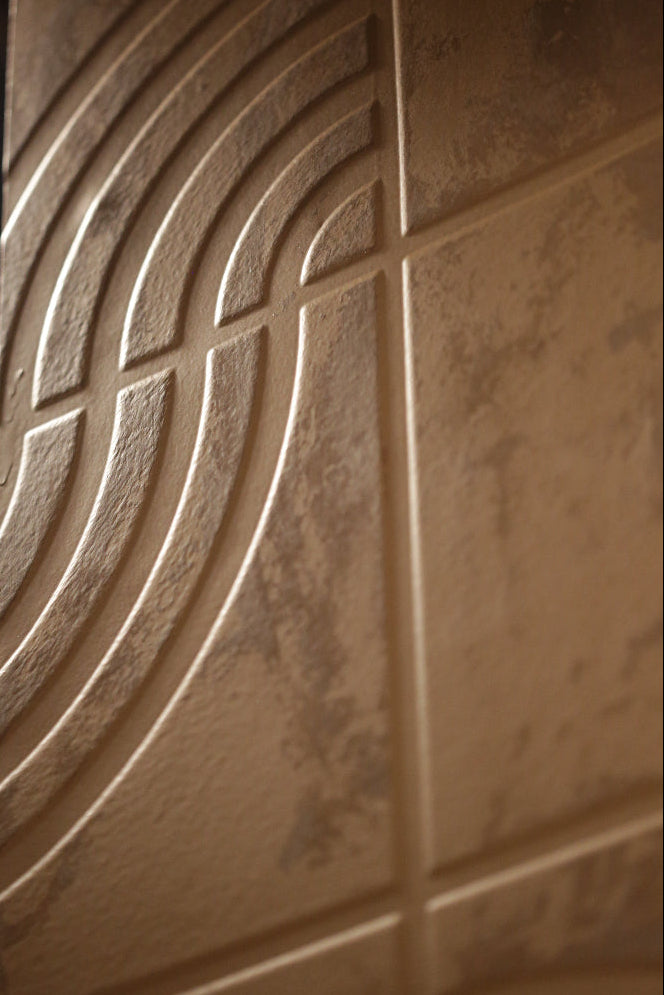

DIMENSE dimensional wallcovering with printed color and tactile embossing

Color + embossing in one workflow

This Material is unique and with additional steps can be used not only on walls.

04 / DIMENSIONAL WALL SURFACES

Dimensional walls, printed or painted.

Roland DG DIMENSE pairs texture-forming media with CMYK water-based ink, structural ink and heat. The media expands in digitally controlled areas to create embossing up to 2 mm. The wall surface can be printed in full color or produced as emboss-only material and painted after installation.

Embossing: Up to 2 mm
Finish: Printed or site-painted
Acoustics: Assembly-dependent

Create custom feature walls for hospitality, retail, workplaces, exhibitions and residential interiors.
Select from non-woven and textile media with matte, suede, pearl, metallic and other finishes.
Confirm fire performance and other commercial classifications for the exact media and installed assembly.

Discuss a dimensional wall Roland DG: DIMENSE DA-640

Manufacturer literature reviewed for this section does not identify standard DIMENSE wallcovering as an acoustically rated product. Any acoustic claim should be based on a separately tested wall assembly.
