Everything you need to go from box to built. Start with the quick answers below, then find your display for step-by-step instructions or the assembly video.

Before You Start

Do I need tools to assemble my display?

No tools required. Every Reframe display assembles by hand. Gloves are helpful as the panels can get slippery, also this is wood so splinters and cuts can happen.

How long does assembly take?

Plan for 15–30 minutes on your first build. Once you've done it, most displays go up in under 10 minutes. A second set of hands makes the taller displays easier.

Can I leave my outdoor display outside?

Our outdoor displays are built with UV clear-coated PureBond plywood and are weather resistant — but not waterproof or weatherproof. Bring your display indoors during storms, sustained rain, or extended stretches of bad weather.

Find Your Display

Tap your display to see written steps or watch the assembly video.

Time: About 30 minTools: None — assembles by hand

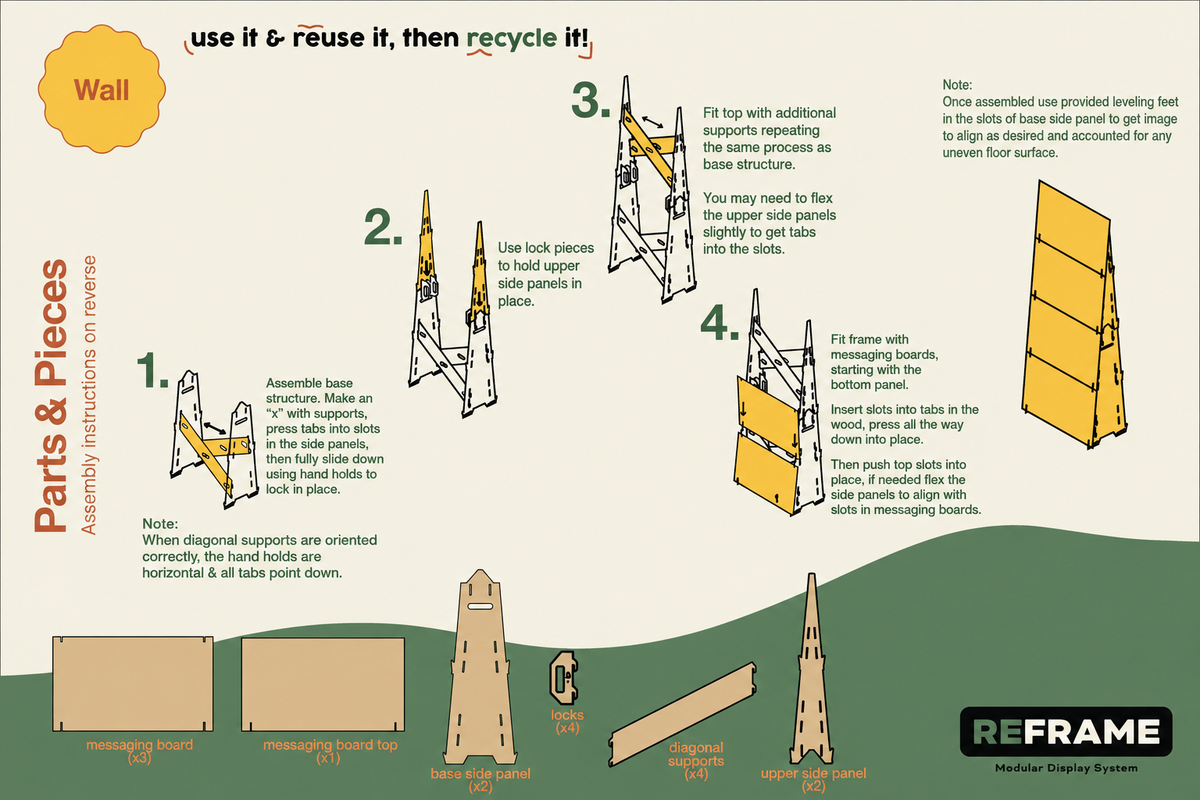

Unpack all components and place them flat on a clean and dry surface.
Confirm that you have two base side panels, two upper side panels, four diagonal supports, four locking pieces, three standard messaging boards, one top messaging board, and the included leveling feet.
Position the two base side panels parallel to each other with their slots facing inward.
Arrange two diagonal supports so they cross each other and form an X.
Make sure the handholds in the diagonal supports are horizontal and all connecting tabs are pointing downward.
Insert the tabs on the first diagonal support into the corresponding slots in both base side panels.
Slide the first diagonal support downward by using the handholds until the tabs lock securely into place.
Insert the tabs on the second diagonal support into the remaining slots in both base side panels.
Slide the second diagonal support downward until the base structure is fully connected and stable.
Position one upper side panel directly above each base side panel.
Align the bottom slots of each upper side panel with the connecting tabs at the top of the corresponding base side panel.
Slide each upper side panel downward until it is fully seated on the base side panel.
Install the locking pieces over the connection points between the upper and lower side panels.
Press each locking piece completely into place to prevent the side panels from separating.
Arrange the two remaining diagonal supports so they cross each other and form an X.
Make sure the handholds in the upper diagonal supports are horizontal and all connecting tabs are pointing downward.
Insert the tabs of the upper diagonal supports into the corresponding slots in the upper side panels.
Flex the upper side panels outward slightly when necessary to help the support tabs enter the slots.
Slide both upper diagonal supports downward until every tab is fully seated and locked into place.
Place the first standard messaging board at the bottom of the assembled frame.
Align the lower slots in the messaging board with the corresponding wooden tabs on the side panels.
Press the messaging board downward until the lower slots are fully seated on the wooden tabs.
Gently flex the side panels when necessary to align the upper slots of the messaging board with the remaining tabs.
Push the upper portion of the messaging board into place until all four connection points are secure.
Install the remaining two standard messaging boards by repeating the same process and working upward one board at a time.
Install the top messaging board last by aligning its slots with the tabs at the top of the frame.
Press the top messaging board completely into place and confirm that it is level with the other messaging boards.
Inspect every diagonal support, lock, side panel, and messaging board to confirm that all tabs are fully seated.
Confirm that the printed graphics face the intended direction and that the artwork lines up evenly between the messaging boards.
Connect additional completed backwall modules side by side when creating a wider display.
Perform a final stability check before using or moving the assembled backwall.

Time: About 15 minTools: None — assembles by hand

Unpack the Double-Sided Stand and place all components on a clean and dry surface.
Separate the two wooden side structures, the top hinge panel, the front graphic panel, the rear graphic panel, and the wooden locking pieces.
Inspect every slot and connecting tab for damage before beginning assembly.
Position the two wooden side structures parallel to each other with the connecting slots facing inward.
Place the top hinge panel between the upper ends of the two side structures.
Align the tabs on one end of the hinge panel with the corresponding slots in the first side structure.
Insert the hinge-panel tabs completely into the first side structure.
Angle the second side structure toward the opposite end of the hinge panel.
Align the remaining hinge-panel tabs with the slots in the second side structure.
Gently flex the structure when necessary to guide the tabs into the slots.
Press the hinge panel downward until both ends are fully seated.
Stand the connected structure upright.
Carefully open the two sides until the stand forms a stable freestanding shape.
Confirm that the bottom edges of both side structures are resting evenly on the floor.
Identify the front graphic panel and position the artwork so it faces outward.
Hold the front graphic panel between the two wooden side structures.
Align the lower slots in the graphic panel with the lower connecting tabs on the stand.
Insert the lower tabs into the graphic panel.
Press the graphic panel downward until the lower connections are fully seated.
Align the middle slots in the graphic panel with the corresponding wooden tabs.
Gently flex the side structures outward when necessary to bring the slots and tabs into alignment.
Press the middle portion of the graphic panel into place.
Align the upper slots in the graphic panel with the upper connecting tabs.
Press the upper portion of the graphic panel into place.
Confirm that every connection on the front graphic panel is completely seated.
Move to the opposite side of the stand.
Position the rear graphic panel with the artwork facing outward.
Align the lower slots in the rear graphic panel with the lower connecting tabs.
Press the rear graphic panel downward until the lower connections are fully seated.
Align and connect the middle slots in the rear graphic panel.
Align and connect the upper slots in the rear graphic panel.
Install the included wooden locking pieces at the designated connection points.
Press each locking piece completely into place without forcing it.
Check that the front and rear graphic panels are straight and facing the correct directions.
Adjust the opening of the stand until both sides are evenly angled.
Confirm that the top hinge panel is centered and fully connected to both sides.
Check that all wooden tabs, panel slots, and locking pieces are completely seated.
Place the stand in its final location on a level surface.
Perform a final stability check before allowing customers or event attendees near the display.

Time: About 15 minTools: None — assembles by hand

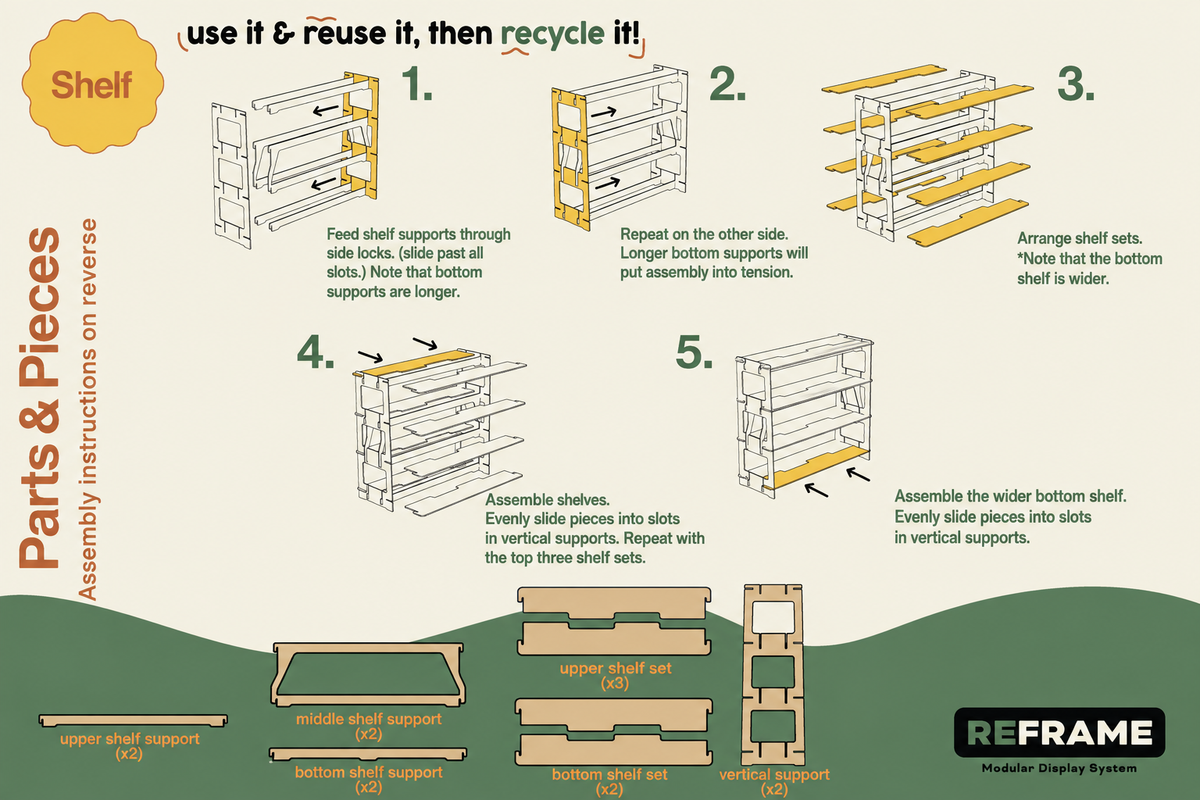

Unpack all components and place them flat on a clean and dry surface.
Confirm that both side panels, all six wooden shelf-support pieces, and all four shelf panels are present.
Identify the wider shelf panel and set it aside for the bottom position.
Identify the longer bottom support pieces and keep them separate from the standard support pieces.
Match the shelf-support pieces by aligning their center slots.
Slide the matching support pieces together until the connections are fully seated.
Repeat this process until all shelf supports have been assembled.
Position the first side panel upright with its connecting slots facing inward.
Align the tabs on the first shelf support with the matching slots in the first side panel.
Press the shelf support inward and then gently press it downward to lock it into place.
Install the remaining shelf supports into the first side panel using the same process.
Place the longer support pieces in the lowest support position.
Position the second side panel opposite the first side panel with its connecting slots facing inward.
Align the exposed shelf-support tabs with the matching slots in the second side panel.
Press the second side panel inward evenly until the support tabs enter the slots.
Gently press the second side panel downward until all the support tabs are fully seated.
Confirm that the longer bottom supports pull the structure into tension and hold the side panels parallel.
Arrange the four shelf panels in the order in which they will be installed.
Choose which side of the reversible top panel should face upward before installing it.
Position the first standard-width shelf panel between the two side panels.
Align the panel with the corresponding slots in the vertical shelf supports.
Slide the shelf panel evenly into the support slots.
Press both sides of the shelf panel down evenly until it is fully seated.
Install the remaining standard-width shelf panels using the same process.
Work carefully to prevent the Falcon Board panels from bending as they pass between the wooden supports.
Position the wider shelf panel at the bottom of the display.
Align the wider bottom shelf with the lowest slots in the vertical supports.
Slide the bottom shelf evenly into the structure.
Press both ends of the bottom shelf down until the panel is fully seated.
Check that every shelf is level and resting completely inside its support slots.
Confirm that the printed sides of all shelf panels face the intended direction.
Check that every wooden tab and slot connection is completely seated.
Place the assembled shelf upright on a level indoor surface.
Gently press on each shelf to confirm that the structure is stable before displaying products.
Keep the weight evenly distributed and do not exceed 15 pounds on any shelf.

Time: About 15 minTools: None — assembles by hand

Unpack all components and place them flat on a clean and dry surface.
Confirm that both side panels, all six wooden shelf-support pieces, and all four shelf panels are present.
Identify the wider shelf panel and set it aside for the bottom position.
Identify the longer bottom support pieces and keep them separate from the standard support pieces.
Match the shelf-support pieces by aligning their center slots.
Slide the matching support pieces together until the connections are fully seated.
Repeat this process until all shelf supports have been assembled.
Position the first side panel upright with its connecting slots facing inward.
Align the tabs on the first shelf support with the matching slots in the first side panel.
Press the shelf support inward and then gently press it downward to lock it into place.
Install the remaining shelf supports into the first side panel using the same process.
Place the longer support pieces in the lowest support position.
Position the second side panel opposite the first side panel with its connecting slots facing inward.
Align the exposed shelf-support tabs with the matching slots in the second side panel.
Press the second side panel inward evenly until the support tabs enter the slots.
Gently press the second side panel downward until all the support tabs are fully seated.
Confirm that the longer bottom supports pull the structure into tension and hold the side panels parallel.
Arrange the four shelf panels in the order in which they will be installed.
Choose which side of the reversible top panel should face upward before installing it.
Position the first standard-width shelf panel between the two side panels.
Align the panel with the corresponding slots in the vertical shelf supports.
Slide the shelf panel evenly into the support slots.
Press both sides of the shelf panel down evenly until it is fully seated.
Install the remaining standard-width shelf panels using the same process.
Work carefully to prevent the Falcon Board panels from bending as they pass between the wooden supports.
Position the wider shelf panel at the bottom of the display.
Align the wider bottom shelf with the lowest slots in the vertical supports.
Slide the bottom shelf evenly into the structure.
Press both ends of the bottom shelf down until the panel is fully seated.
Check that every shelf is level and resting completely inside its support slots.
Confirm that the printed sides of all shelf panels face the intended direction.
Check that every wooden tab and slot connection is completely seated.
Place the assembled shelf upright on a level indoor surface.
Gently press on each shelf to confirm that the structure is stable before displaying products.
Keep the weight evenly distributed and do not exceed 15 pounds on any shelf.
now do the narrow shelf utilizing the narrow shelf instructional sheet
Worked for 3m 5s

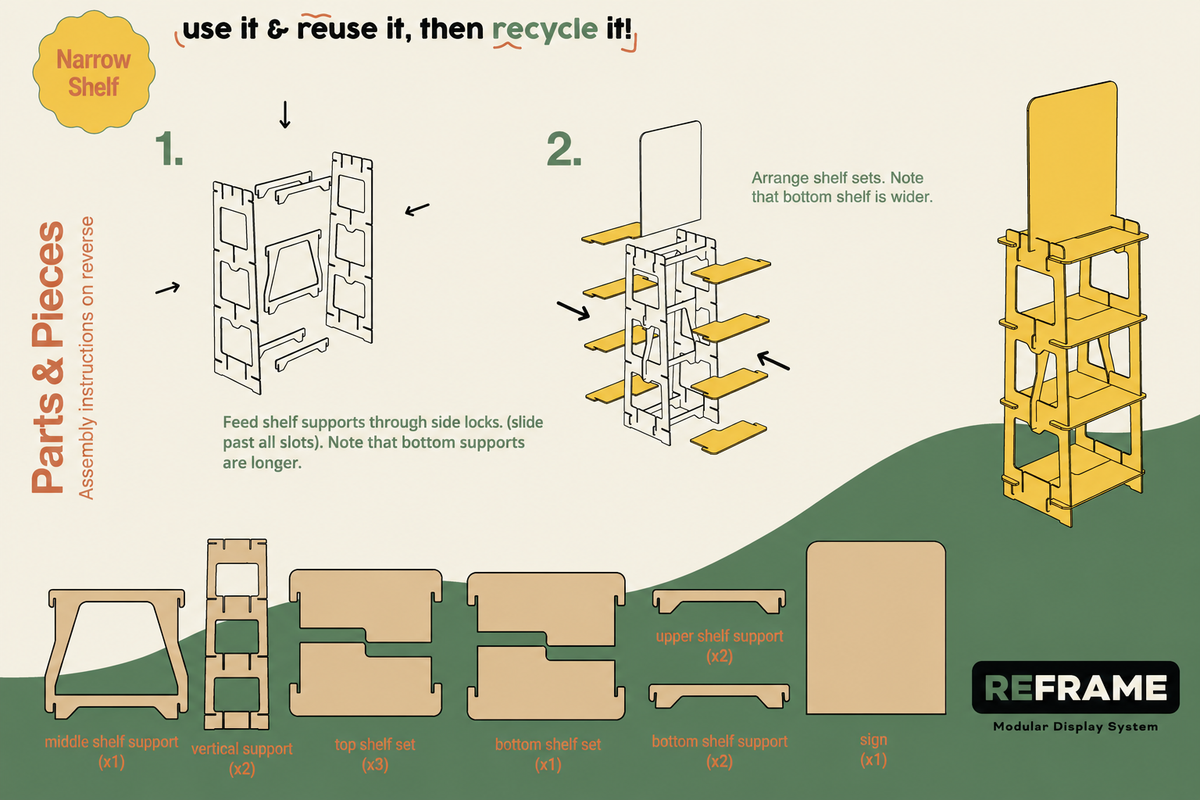

ReFrame Narrow Shelf Assembly Guidelines
These instructions follow the Narrow Shelf sheet’s specific notes to slide the supports completely through the side locks, place the longer supports at the bottom, and use the wider shelf set in the bottom position.
Unpack all components and place them flat on a clean and dry surface.
Separate the two vertical side locks, the shelf supports, the shelf panels, and the header graphic.
Group the shelf panels into their matching shelf sets.
Identify the longer shelf supports and reserve them for the bottom of the display.
Identify the wider shelf set and reserve it for the bottom shelf position.
Position the two vertical side locks parallel to each other with their openings aligned.
Feed the first shelf support through the corresponding opening in the first side lock.
Continue sliding the support completely through the side lock and past all of its slots.
Guide the opposite end of the support through the matching opening in the second side lock.
Repeat this process with each remaining standard shelf support.
Install the longer shelf supports in the lowest support positions.
Confirm that both side locks are straight, parallel, and securely connected by the supports.
Position the double-sided header graphic above the assembled support structure.
Align the header graphic with the designated slots at the top of the frame.
Slide the header graphic downward until it is completely seated.
Arrange the shelf sets in the order in which they will be installed.
Position the first standard shelf set at the highest shelf level.
Place one matching shelf panel on each side of the central support structure.
Align the slots in both shelf panels with the corresponding shelf-support tabs.
Slide both shelf panels inward evenly until the tabs enter the slots.
Press both sides of the shelf set downward evenly until the panels are completely seated.
Install the remaining standard shelf sets by repeating the same process and working downward.
Position the wider shelf set at the lowest shelf level.
Align the wider bottom shelf panels with the longer bottom supports.
Slide both bottom shelf panels inward evenly.
Press both sides of the bottom shelf downward until the panels are fully seated.
Confirm that the wider shelf is installed at the bottom and that all other shelf sets are in their correct positions.
Confirm that the printed sides of the shelf panels face the intended directions.
Check that every support passes completely through both side locks.
Check that every shelf panel and the header graphic are fully seated in their slots.
Place the assembled Narrow Shelf upright on a level indoor surface.
Gently test each shelf and the overall structure for stability before adding products.
Avoid forcing, bending, or twisting the Falcon Board components during assembly or disassembly

No displays in this category yet.
